Advantages of UHMW drag conveyor paddles :
Strong will not break
Abrasion resistant to outlast other materials
Flexible but returns to original shape
Chemical resistant won’t rust or corrode
Sanitary – USDA/FDA Approved
Economical
Heat and cold resistant
Moisture resistant – prevents clogging
Self Lubricating
GENERAL INFORMATION
Material：
UHMW, natural – USDA/FDA Approved Food Grade
UHMW, reprocessed black
Tivar88, cross linked for added strength andabrasion resistance.
Stamped or machined
Operating Temperature Range: -120 f +o 225 f
Installation:
When Installing, place flat steel washer on the front side of the flight next to the plastic.

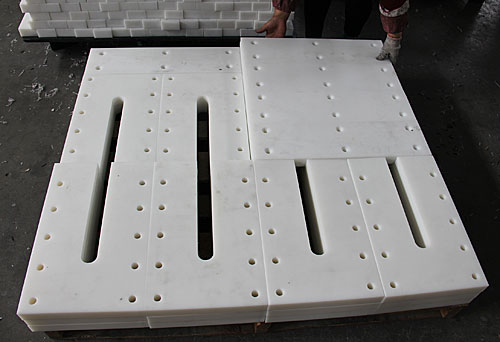

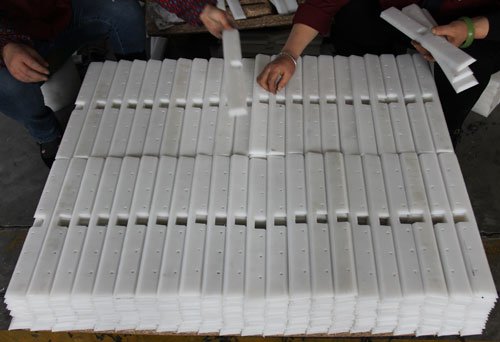

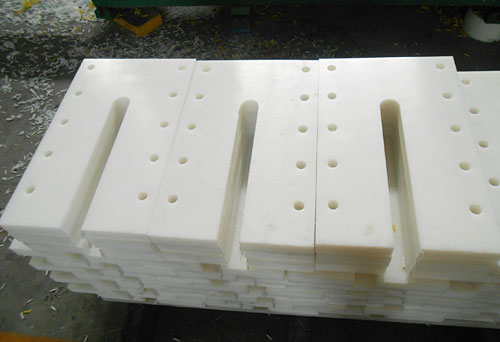

Flat Bottom Drag Flights (Paddles)
TYPICAL DETAILS REQUIRED
1) Customers Description (Manufacturer, Drawing # etc)
2) Material Type & Thickness (eg. UHMW, HDPE, Nylon,; if food grade required)
3) Size of flight: **Height **Width **Radius
4) Number of Holes ** Diameter Position of Holes **Width Spacing (centre to centre) **Height
5) Cut-Out Size: ** Width **Height
6) Bevel of Edge: Yes No Other Bevel (Specify)
7) Quantity Required
8) any additional information
Application:
| 1 | Thermal power | coal handling, storage of coal and warehousing chute lining |
| 2 | Coal processing | Sieve-plate, filter and U-underground coal chute |
| 3 | Concrete | cement raw and finished product silo silo lining |
| 4 | Grain | food storage or chute lining |
| 5 | Mining | sieve plate, chute linings and wear anti-bonding part |
| 6 | Chemical engineering | corrosion and wear resistance mechanical parts |
