Date sheet for UHMWPE Suction tops ,UHMWPE Dewatering elements ,uhmwpe suction box cover
Items | Unit | Value |
Specific Gravity | g/cm³ | 0.96 |
Max Continuous Operating Temp | °C | 80 |
Max Short Term Operating Temp (3-4hrs) | °C | 130 |
Tensile Strength | Mpa | 23 |
Co-efficient of thermal expansion | m/(m.k) x 10¯6 | 150-230 |
Dielectric Strength | KV/mm | 45 |
Surface Resistivity | Ohms | >1014 |
Relative Abrasion Loss by Sand Slurry | 70 |

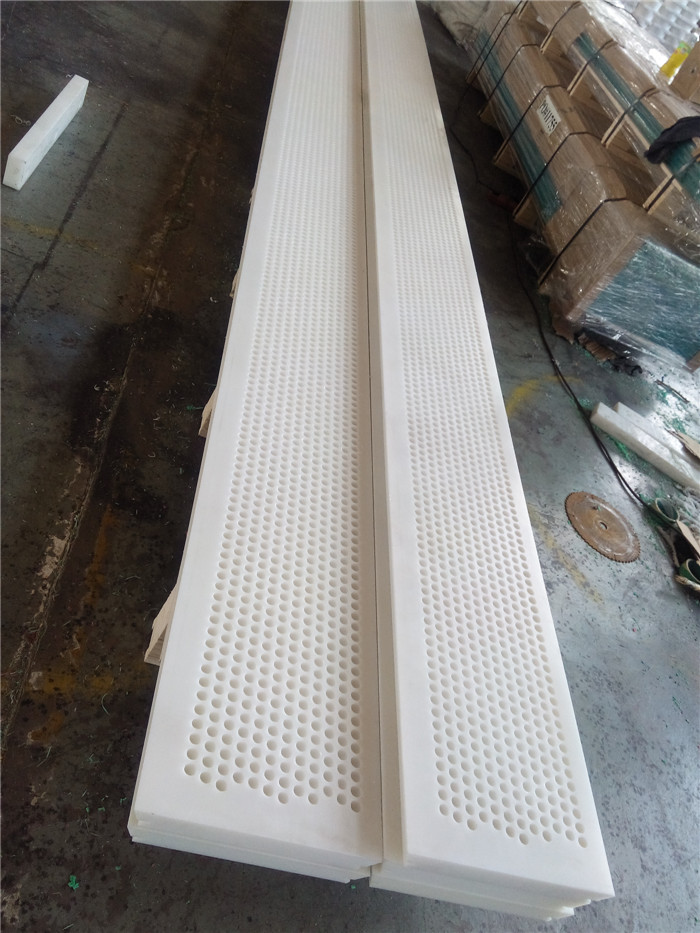

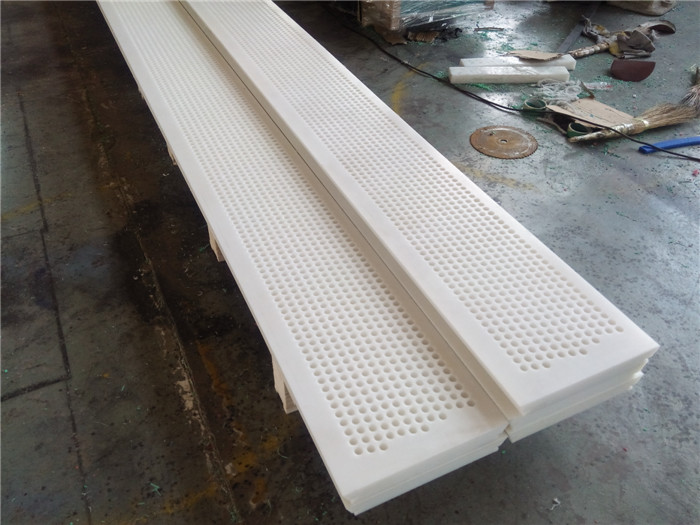

UHMWPE Suction tops ,UHMWPE Dewatering elements ,uhmwpe suction box cover
Key Features and Benefits of UHMWPE Suction tops Plus:
Impact strength - it is virtually unbreakable
Light weight - easy to handle without special equipment
Electrical insulation - it is a good insulator
Weatherproof - it doesn't absorb water
Chemical resistance - resists corrosive chemicals (Sulphuric Acid, Caustic Soda)
Abrasion resistance - rated better than carbon steel for sliding abrasion applications
UHMWPE Sheet other Applications:
Dewatering elements
Foil blades
Suction box tops
Vacuum forming boards
