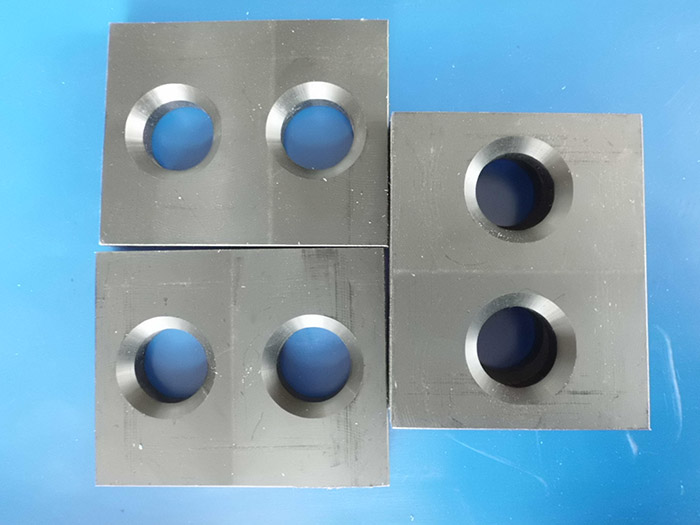

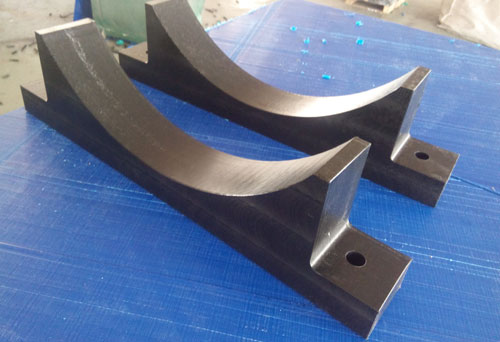

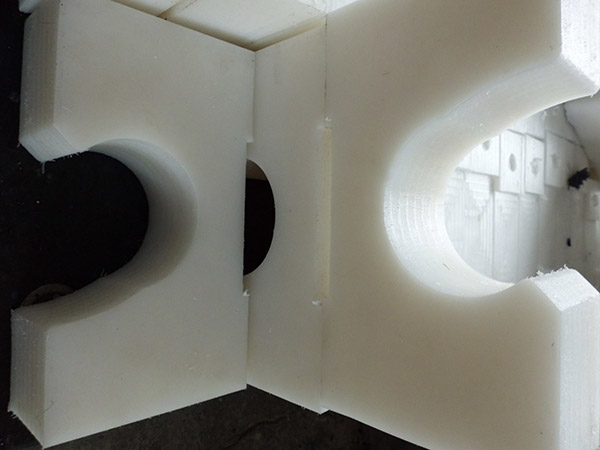

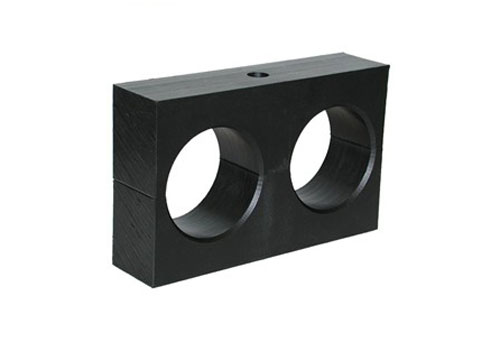

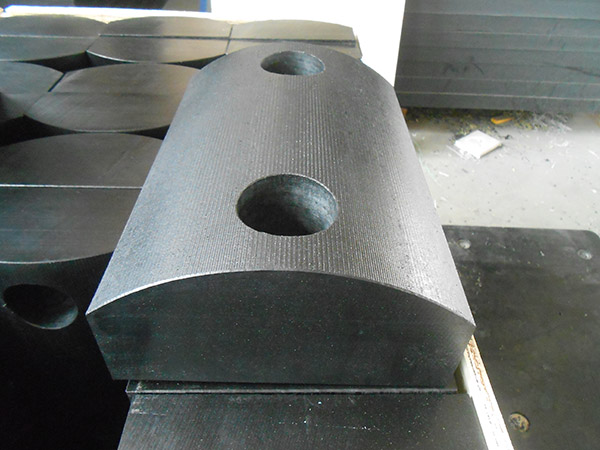

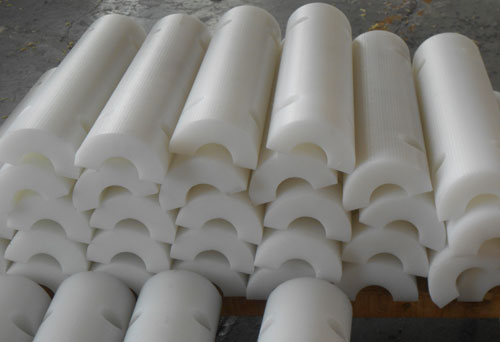

UHMWPE pipe support or HDPE Pipe support mainly used in the construction pipeline laying and rack access, specially installed in the heat or cold pipe rack below the support bracket and then double-bolt seat tube clamp clamped. Play the role of shock, vibration and wear.
UHMW-PE plastic pipe support description
UHMWPE material has exceptionally low coefficient of friction offering superb sliding properties and is one of the best plastics for wear/abrasion resistance meanwhile tough and impact resistant even at cryogenic temperatures. As a result, it is definite that UHMW polyethylene is a wonderful engineering plastic that can solve many problems that other engineering plastics cannot.
Characteristics for UHMW-PE plastic pipe support
1. UHMW exhibits virtually no water absorption
2, Non-Toxic
3. Low coefficient of friction
4. Corrosion resistant
5. Abrasion and impact resistant
6. Wear Resistant
7. Dielectric
8. Weatherproof
A parameter table for UHMWPE
| Property | ASTM Test | Units Metric (US) | Typical Values |
| Specific Gravity | D792 | gm/cm° | 0.926-0.934 |
| Tensile Strength @ Yield | D638 | MPa (PSI) | 21 (3100) |
| Tensile Strength @ Break | D638 | MPa (PSI) | 48 (7000) |
| Elongation @ Break | D638 | % | 350 |
| Young's ("E") Modulus (23℃) | D638 | MPa (PSI 105) | 690 (1.0) |
| Young's ("E") Modulus (-269℃) | D638 | MPa (PSI 105) | 2970 (4.3) |
| Izod Impact Strength (23℃) | D256(1) | J/m (ft-LBS/in notch) | 140 (30) |
| Izod Impact Strength (-40℃) | D256(1) | J/m (ft-LBS/in notch) | 100 (21) |
| Hardness, Shore "D" | D2240 | - | 62-66 |
| Abrasion Resistance | (2) | - | 100 |
| Water Absorption | D570 | % | Nil |
| Relative Solution Viscosity | D4020 | dl/gm | 2.3-3.5 |
| Density | (lbs./cubic in.) | .034 |
Specification can be at your demands.
Material type :
UHMWPE Pipe support ,HDPE pipe support ,Regenerated HDPE pipe support

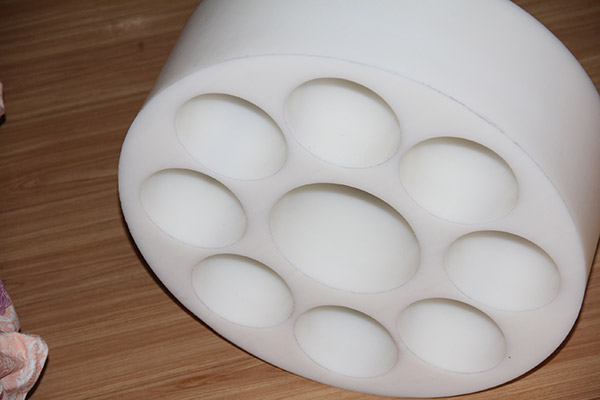

UHMWPE Cable support ,HDPE Cable support ,Regenerated HDPE Cable support .

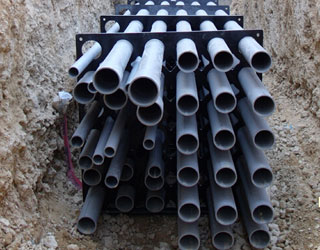

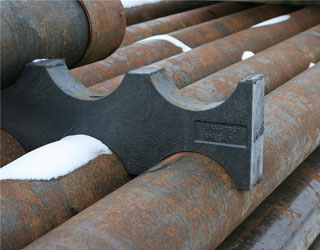

These block assemblies are used to separate, stabilize and support cables or pipes in a precast concrete trench or channel system to keep them steady .
As support they have the following characters:
Corrosion and Chemical Resistant
High impact strength
Light weight and cost efficient
High wear -resisting
Easy to handle and easy to move
Long lasting life
Many hole sizes and configurations are available.
