UHMWPE Guide Rail High Wear Resistance

Product Description

What is Chain Guide Rail?

A chain guide rail, often referred to as a chain guide, is a component used in conveyor systems and various

types of machinery to guide and support chains, belts, or cables as they move. These guide rails help ensure

smooth and consistent motion, reduce friction and wear, and maintain the proper alignment of the chain or

belt. Here are some key aspects of chain guide rails:


1. Material

Chain guide rails are commonly made from materials like UHMWPE (Ultra-High-Molecular-

Weight Polyethylene), HDPE (High-Density Polyethylene), nylon, and other durable plastics. These materials

are chosen for their low friction, high wear resistance, and ability to withstand harsh operating conditions.


2. Function

The primary function of a chain guide rail is to keep the chain or belt aligned and supported

during operation. This helps prevent the chain from derailing, reduces vibration, and minimizes wear on both

the chain and the conveyor system.


3. Applications

Chain guide rails are widely used in various industries, including food processing,

packaging, automotive, and manufacturing. They are essential in conveyor systems, bottling lines, and any

machinery where chains or belts are used for movement.


4. Design

Chain guide rails come in various shapes and sizes, depending on the specific application.

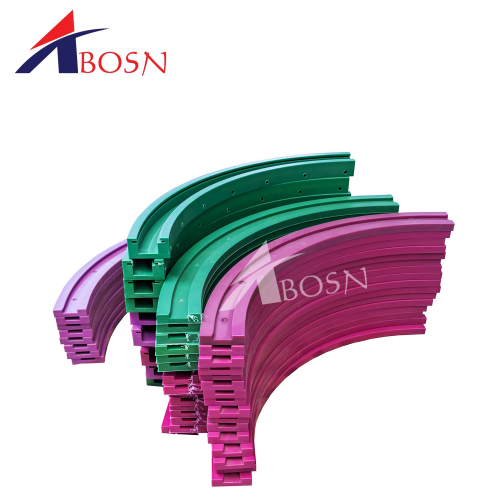

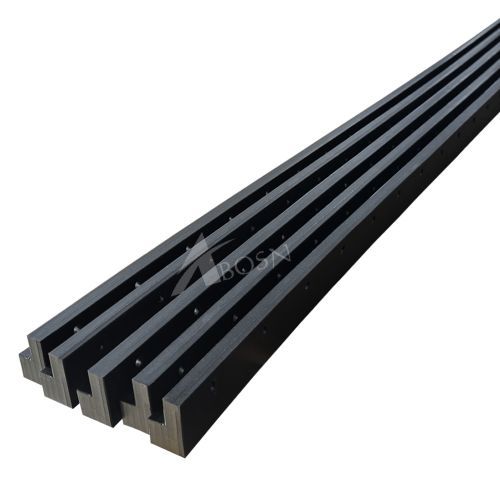

They can be straight or curved, with different profiles to accommodate different types of chains or belts.

Custom-designed guide rails can also be made to fit specific machinery or production lines.


5. Benefits


  • Reduced Wear and Tear

    By providing a smooth surface for the chain to move against, guide rails help

    reduce wear on both the chain and the machinery.

  • Increased Efficiency

    Proper alignment and support of the chain ensure smoother and more efficient operation, reducing

    downtime and maintenance costs.

  •  Noise Reduction

    Guide rails can help reduce the noise generated by chain movement, which is especially important in

    environments where noise levels are a concern.

  • Improved Safety

    By keeping the chain properly aligned, guide rails help prevent potential malfunctions or accidents

    caused by chain derailment.


Overall, chain guide rails are a crucial component in ensuring the reliable and efficient operation of conveyor

systems and machinery that utilize chains or belts for movement.
