What is Chain Guide Rail?
A chain guide rail, often referred to as a chain guide, is a component used in conveyor systems and various
types of machinery to guide and support chains, belts, or cables as they move. These guide rails help ensure
smooth and consistent motion, reduce friction and wear, and maintain the proper alignment of the chain or
belt. Here are some key aspects of chain guide rails:
1. Material
Chain guide rails are commonly made from materials like UHMWPE (Ultra-High-Molecular-
Weight Polyethylene), HDPE (High-Density Polyethylene), nylon, and other durable plastics. These materials
are chosen for their low friction, high wear resistance, and ability to withstand harsh operating conditions.
2. Function
The primary function of a chain guide rail is to keep the chain or belt aligned and supported
during operation. This helps prevent the chain from derailing, reduces vibration, and minimizes wear on both
the chain and the conveyor system.
3. Applications
Chain guide rails are widely used in various industries, including food processing,
packaging, automotive, and manufacturing. They are essential in conveyor systems, bottling lines, and any
machinery where chains or belts are used for movement.
4. Design

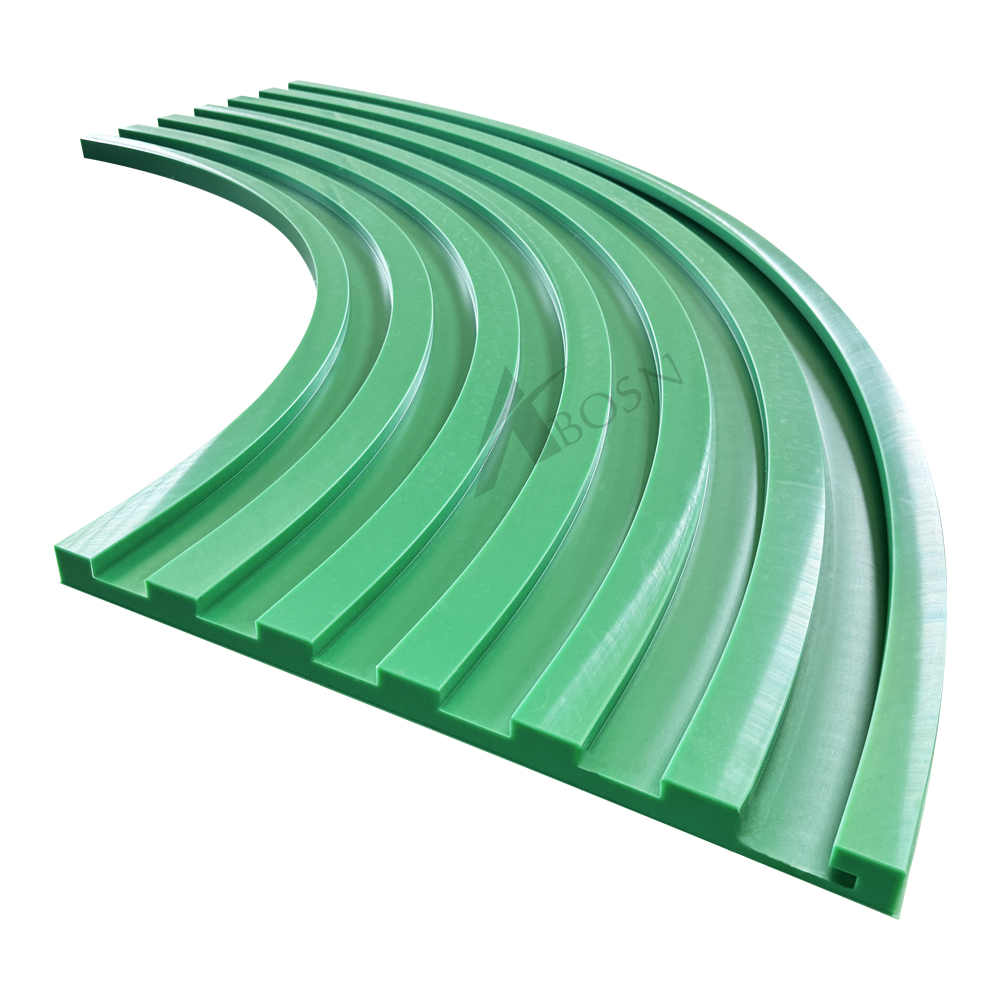

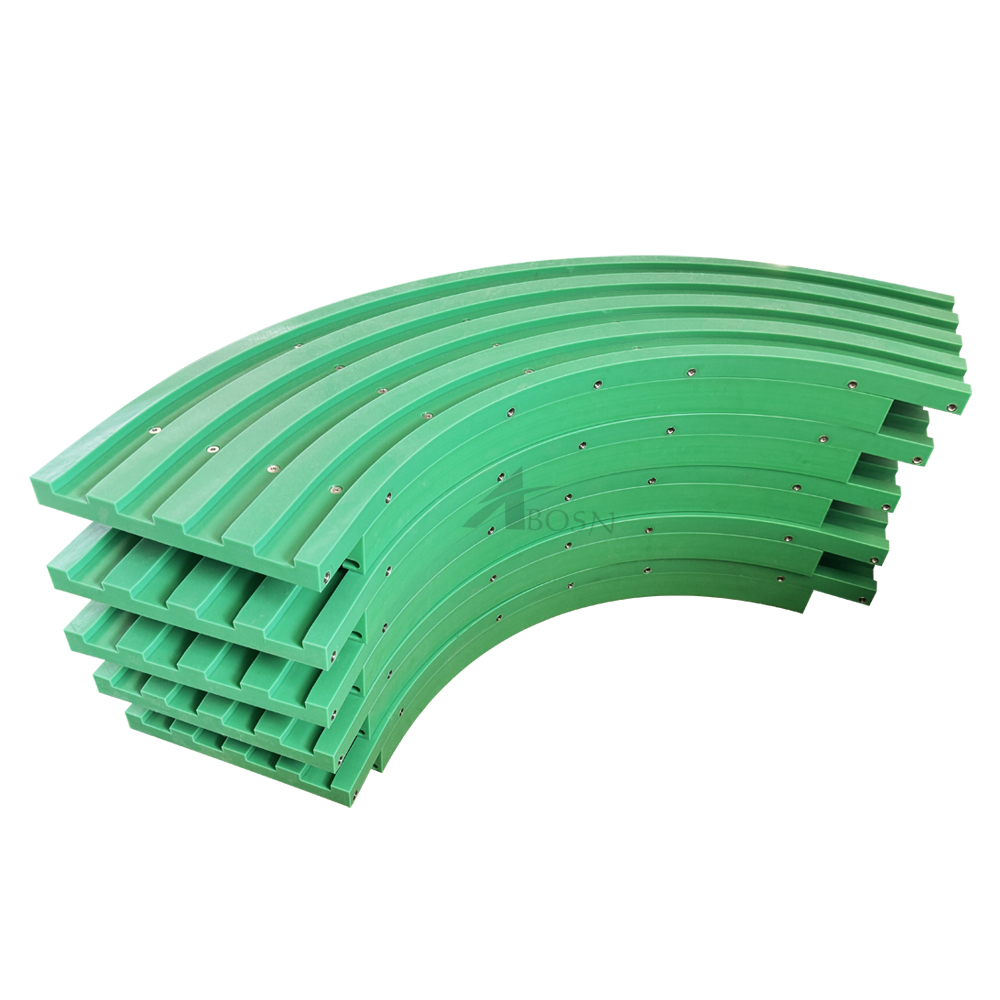

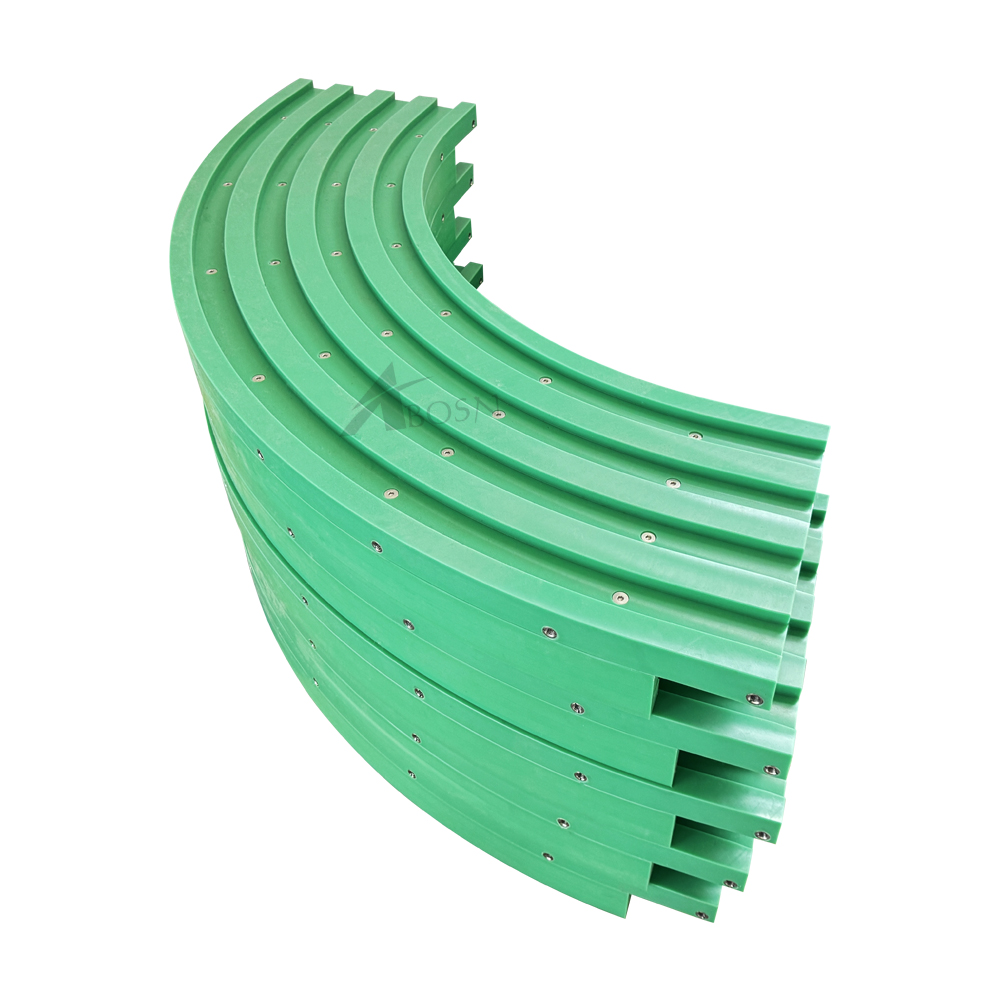

Chain guide rails come in various shapes and sizes, depending on the specific application.
They can be straight or curved, with different profiles to accommodate different types of chains or belts.
Custom-designed guide rails can also be made to fit specific machinery or production lines.
5. Benefits
Reduced Wear and Tear
By providing a smooth surface for the chain to move against, guide rails help
reduce wear on both the chain and the machinery.
Increased Efficiency
Proper alignment and support of the chain ensure smoother and more efficient operation, reducing
downtime and maintenance costs.
Noise Reduction
Guide rails can help reduce the noise generated by chain movement, which is especially important in
environments where noise levels are a concern.
Improved Safety
By keeping the chain properly aligned, guide rails help prevent potential malfunctions or accidents
caused by chain derailment.
Overall, chain guide rails are a crucial component in ensuring the reliable and efficient operation of conveyor
systems and machinery that utilize chains or belts for movement.
